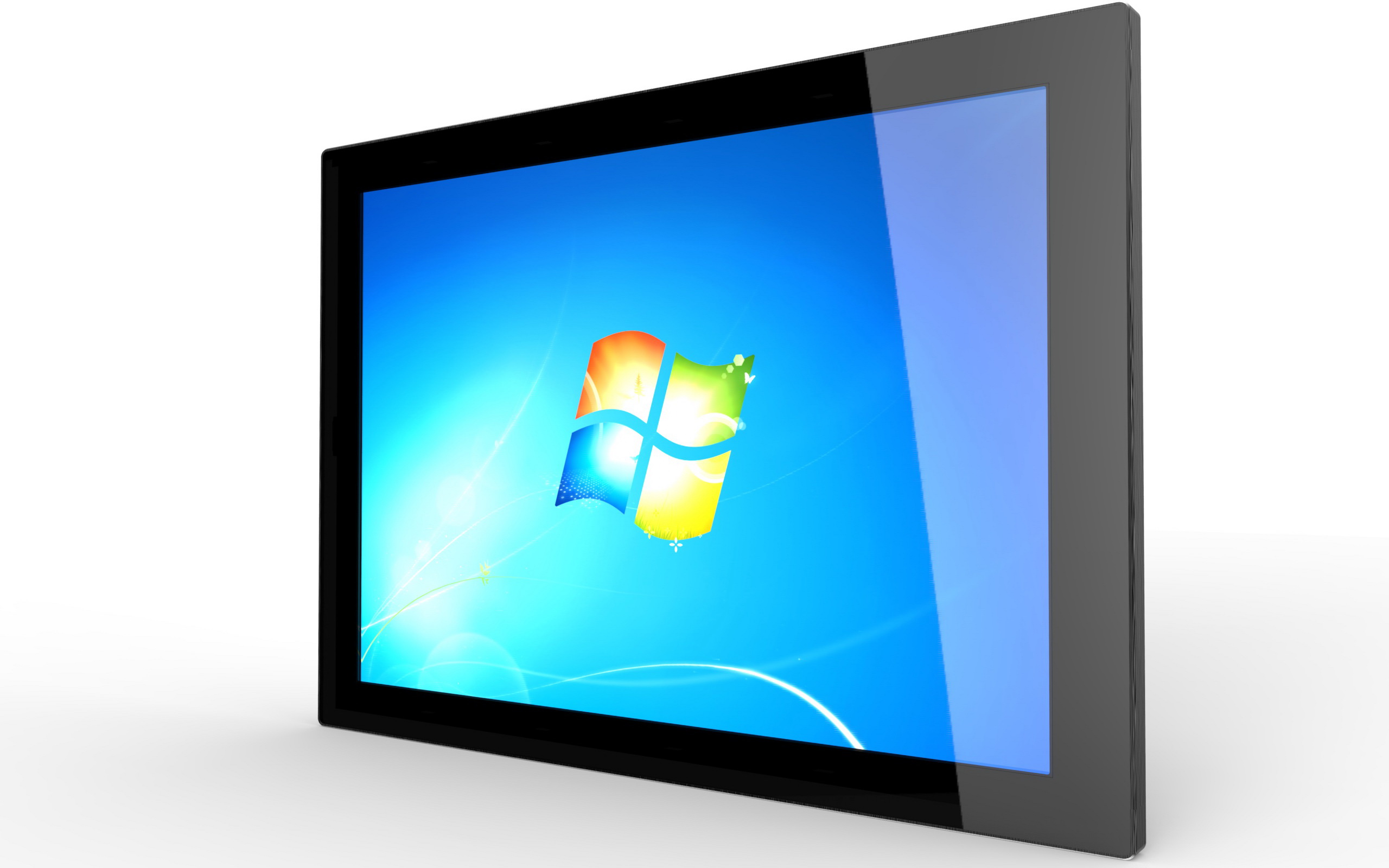

APC-1950T

19” Panel PC with Intel® Braswell SoC with Touch Screen, HDMI, VGA, 2 LAN, 4 USB, 3 COM, Audio


Features:
◎ 19” SXGA support 1280 x 1024 pixels
◎ Intel® Pentium®/Celeron® Braswell SoC Processor
◎ 5 Wire resistive touch screen
◎ 2 x LAN, 1 x HDMI, 1 x VGA, 3 x COM, 4 x USB 3.0
◎ 1 x Audio line in, 1 x Audio line out
◎ Panel Mount, Wall Mount, VESA Mount

The APC-1950T panel pc computer is an all-in-one and compact system designed around a highly integrated Intel® Graphics Media Accelerator (GMA) chipset motherboard computer which is equipped with a 19-inch TFT LCD display. Features an embedded Intel® Pentium®/Celeron® Braswell processor, it offers a compact design for limited space environments to meet the demanding performance requirements of business and industrial applications including factory / warehouse / home automation, digital signage, kiosk, network communication and information terminal.



Display











Display Type

19” SXGA TFT LCD

Resolution

1280 x 1024 pixels

Luminance / Brightness

350 cd/m2 (w/o Touch)

Backlight MTBF

LED Backlight, 30,000 hrs

Touch Screen Type

5 Wire Resistive Touch Screen with USB Interface

Main System















System Board

Mini-ITX Form Factor, Dimension: 170 x 170 mm

CPU

Intel® Pentium®/Celeron® Braswell SoC

Celeron® N3150/N3160 Quad core processor

Chipset

Intel® Braswell SoC integrated

Memory Slots

Dual channel DDR3L 1600 MHz SO-DIMM

Support up to 8 GB of system memory

Onboard Graphic

Intel® HD Graphics 400

Audio

High Definition Audio

LAN

2 x Realtek RTL8111G Gigabit Ethernet

Storage



Drive Bay

1 x mSATA SSD bay

I/O Connectors









1 x VGA, 1 x HDMI, PS/2 KB & PS/2 Mouse

2 x LAN, 3 x COM(1 x RS232, 2 x RS232/422/485), 4 x USB 3.0

1 x Audio line in, 1 x Audio line out

Power switch

Expansion



1 x Mini PCI-Express socket

Power Supply



12V or 19~24V DC-in

Dimension



441.4mm x 366mm x 82mm

Environment







Storage Temperature: -20 ~ 60˚C

Operating Temperature: 0 ~ 50˚C

Relative Humidity: 10%~95%, non-condensing

Optional Accessories:

SATA SSD



32GB, 64GB, 128GB

DDR3L RAM



2GB, 4GB, 8GB



Optional OS Installation:

Windows Embedded Standard 7 Runtime(WES7)



Ordering Information:

APC-1950T



19” Panel PC Computer
