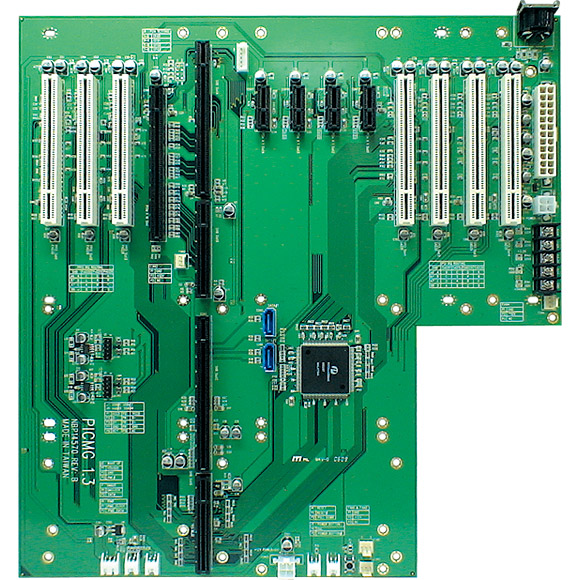

NBP-14570-BX

14-slot Backplane for 4U Chassis with 1 x SHB, 7 x PCI Slots, 4 x PCIe x1, 1 x PCIe x16


Features:
◎ 1 x PICMG 1.3 (SHB Slot)/7 x PCI 32-bit/33MHz
◎ 1 x PCIe x16 Lane/4 x PCIe x1 Lane
◎ Supports ATX Power Supply


Solution:

The NBP-14570-BX is a 14-slot backplane for 4U chassis with 1 SHB slot, 7 x PCI slots, 4 PCIe x 1 and 1 x PCIe x 16. It follows PICMG 1.3 platform specifications and supports ATX power supply.



Model No.



NBP-14570-BX

System Architecture



For 14-slot Chassis

Dimension



317 mm (L) x 328 mm (W) (12.4" x 12.9")

Slots



1 x PICMG 1.3 (SHB slot)

7 x PCI 32bit/33Mhz

1 x PCIe x16

4 x PCIe x1

I/O Interface



4 x USB 2.0 with 2 x 9 pin-header

2 x SATA

2 x 3-pin fan

1 x 6 Pin JST defined front I/O connector for power LED connector/ power switch/ reset button connector

Power Input



1 x 24pin power connector

1 x Terminal Block

Power Output



1 x 4-pin 12V AUX power connector to SBC/SHB

Environment



Board level operating temperatures: -0˚C to 60˚C

Storage temperatures:-20˚C to 80˚C

Relative Humidity



10% to 90% (non-condensing)

Certification



CE approval

FCC Class A


Ordering Information:

NBP-14570-BX



PICMG 1.3 14-slot backplane for 4U chassis w/ 1 SHB slot, 7 PCI slots, 1 PCIe x16, 4 PCIe x1
