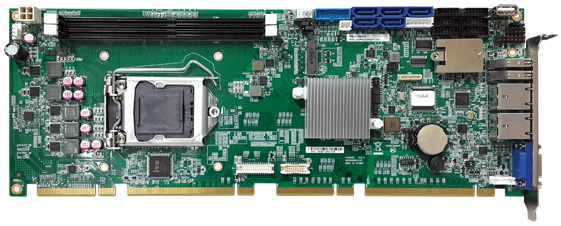

PEAK-888VL2

PICMG 1.3 Full-size SBC with Intel® Q170/H110 Support 6th Generation Intel® Core™ i7/i5/i3 Processors


Features:
◎ 6th generation Intel® Core™ i7/i5/i3 processor
◎ Intel® Q170/ H110 PCH chipset PICMG 1.3 specification
◎ Dual channel DDR4 with Non-ECC DIMMs 1866/2133MHz up to 32GB
◎ PCIe 3.0 SATA 3.0 W/RAID 0,1,5,10, M.2 NVMe
◎ Display for VGA, DVI/HDMI, DP
◎ Intel® AMT 11 & TPM 1.2/ 2.0(optional)


Solution:

The PEAK-888VL2 is a PICMG1.3 Full-size Single-Board Computing .It equipped with Intel® 6th generation Core™ i7/i5/i3 processors and Intel® Q170/ H110 chipset. It comes with Dual DDR4 DIMM socket up to 32GB DDR4 1866/2133MHz with Non-ECC support and integrated HD Graphic controller.

The PEAK-888VL2-Q SKU with Intel® Q170 PCH providing high performance and rich expansion. The SATA3.0 ports with RAID 0, 1, 5 and 10 helps provide quick access to data files and data protection. Furthermore, the advanced storage capabilities with Intel® RST features PCIe Gen3 x4 on NGFF M.2 form factor (2280, 22110) to maximizes storage performance and it also features an integrated Intel® AMT 11 for easier maintenance.

The PEAK-888VL2-H SKU with Intel® H110 PCH provides high performance and cost effective solution.



Model No.



PEAK-887VL2

CPU Support



Socket LGA 1151 6th generation Intel® Core™ i7/i5/i3 processor (65W/ 35W) TDPs

Main Memory



2 x DIMM, support Dual channel DDR4 NON-ECC DIMM 1866/2133 MT/S (Maximum32GB)

Chipset



Intel® Q170/H110 PCH chipset

BIOS



AMI system BIOS

16MBit SPI depended on AMT function

Dual BIOS for Four PCIex1 and One PCIex4

LAN



1x Intel® WGI219LM GbE PHY (PEAK-888VL2-Q support Intel® AMT 11)

1x Intel® I211 Gigabit Ethernet Controller

RJ45 with LED connecter x 2

Support Boot From LAN (PXE)

Support Wake on LAN

Display



The Processor Graphics contains a refresh of the ninth generation graphics

Intel® HD Graphics 530

Support independent triple display

VGA: Resolution up to 1920x1200 pixels @60MHz

DVI: Resolution up to 1920x1200 pixels @60MHz

HDMI: Resolution up to 4096x2304 pixels @60MHz

DP: Resolution up to 4096x2304 pixels @60MHz

Supporting 4K display required two DDR channels of same size

Audio



High definition audio interface

I/O Interface



1 x PCI Express x16 and 1 PCI Express x4 to backplane

4 x PCI to backplane

PEAK-888VL2-Q:

-5 x SATA 3.0 port (2 x SATA 3.0 to BP through BIOS setting)

-1 x M.2 2280/ 22110 M Key (NVMe Gen 3 PCIex4)

-Support RAID 0/1/5/10

-SIO: ITE8786 , COM 1,3,4 Support RS232 , COM2 support RS232/422/485 can be selected RI/5V/12V through jumper PS2 KB/MS x1 JST connector

-Parallel Port: 26-pin box header x 1

-6 Ports USB2.0 and 4 ports USB3.0

. 2 ports USB2.0, 2 ports USB3.0

. 1 port USB2.0 Type A (PEAK-888VL2-Q only)

. 4 ports USB 2.0 through backplane

. 2 ports USB 3.0 through I/O bracket

-2x10 pin header to support TPM module

-2 x Smart FAN connector (for CPU, system)

-On-board buzzer

-Watchdog time out can be programmable by software from 1 second to 255 seconds

Power Requirements



Power source form backplane through golden finger and AUX +12V

Support ATX/AT function by jumper setting

BIOS default is (ATX MODE)

Dimensions



338.58mm (L) x 126.39mm (W), 8 layers (single side)

Environment



Board level operating temperatures: -20˚C to 60˚C

Storage temperatures:-20˚C to 85˚C

Relative Humidity



0% to 90% (operating, non-condensing)

0% to 95% (non-operating, non-condensing)

Certification



CE approval

FCC Class A

CB/CCC


Ordering Information:

PEAK-888VL2-Q



PICMG 1.3 Full-size SBC, Q170, Intel® LGA1151, DDR4 DIMM, support triple display LAN x 2, USB 3.0 x 4, SATA 3.0 x 5, M.2 (support PCIe storage)

PEAK-888VL2-H



PICMG 1.3 Full-size SBC, H110, Intel® LGA1151, DDR4 DIMM, support dual display LAN x 2, USB 3.0 x 4, SATA 3.0 x 4, M.2 (support SATA storage)
