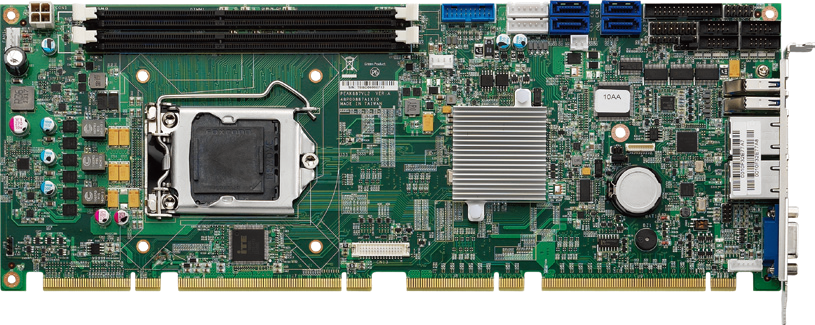

PEAK-887VL2

PICMG 1.3 Full-size SBC with Intel® Q87 Support 4th Generation Intel® Core™ i7/i5/i3 Processors


Features:
◎ Scalable platform 4th generation Intel® Core™ i7/i5/i3 processor + Non-ECC
◎ Intel® Q87 PCH chipset support PICMG 1.3 specification
◎ Support Dual channel DDR3L with NON-ECC DIMMs 1333/1600MHz up to 16GB
◎ Support PCIex16, 4x PCIex1, 4x USB 3.0/ 4x USB 2.0, 4x SATA 3.0/ 2x SATA 2.0 and GbE
◎ Display support for VGA, DVI, HDMI
◎ Dimension 338.58 x 126.39 mm (W x L) (8 Layers Single side)


Solution:

The PEAK-887VL2 is a PICMG1.3 Full-size single computing board featuring Intel® Q87 PCH chipset supports 4th generation Intel® Core™ processor with Dual DDR3L DIMM socket up to 16GB DDR3 1333/ 1600MHz SDRAM with Non-ECC support and integrated HD Graphic controller.

The Intel® Q87 PCH manages SATA 2.0/3.0 Ports. Furthermore, it supports others versatile I/O ports such as legacy four series ports, KB/Mouse interface, optional TPM function, eight USB ports, four PCI express x1 interface and two Intel® PCI express Gigabit LAN port. It offers a great solution for advance industrial application that requires superb display and processing performance.



Model No.



PEAK-887VL2

CPU Support



Socket LGA 1150 4th generation Intel® Core™ i7/i5/i3 processor (95W/ 65W/ 45W/ 35W) TDPs

Main Memory



2 x DIMM, support Dual channel DDR3L (default)/ DDR3 NON-ECC DIMM (dual voltage models by auto detection for DDR3 and DDR3L

Maximum 16 GB – 1066/1333/1600 MT/S

Chipset



Intel® Q87 PCH chipset

BIOS



AMI system BIOS

16MBit SPI depended on AMT function

Dual BIOS for Four PCIex1 and One PCIex4 (setting by DP switch)

LAN



1x Intel® I217LM GbE PHY

1x Intel® I211 Gigabit Ethernet Controller

RJ45 with LED connecter x 2

Support Boot From LAN (PXE)

RJ45 LED

Support Wake on LAN

Extra (External) LED: 2 x 4 pin header

Display



The Processor Graphics contains a refresh of the seventh generation graphics

Intel® HD Graphics GT1 / GT2

Share system memory

Analog Display Support

Drive a standard progressive scan analog monitor

Audio



Reverse HDA interface, 2.0mm 2x5 pin header

I/O Interface



ITE8783

PS2 KB/MS reserve 1x6 (2.0m) JST connector

26-pin Box Header x 1 (2.0mm)

SIO Box Header x 4 (2.0mm), COM1,3,4 support RS232, COM2

RS232/422/485, RI pin can be select RI/5V/12V with jumper (2x3 pin 2.0mm pin-header)

4 Ports USB 2.0 and 4 ports USB 3.0:2 ports through 2.5mm JST Connectors, located near Rear Side of PCB (near CPU, USB3.0) 4 ports through backplane (USB 2.0)

2 ports through I/O bracket (USB 3.0)

4-pin FAN connector x 2 (for CPU,System)

On board pin header for IrDA Tx Rx 1x5/2.54mm pin-header

HDD LED/ Power LED/ Power ON SW/ Reset SW

On Board buzzer

USBx1/ USBx1/ LAN1 RJ45 x1/ LAN2 RJ45 x1/ VGA DB15 from top to down

Power Requirements



Power source form backplane through golden finger and AUX +12V

Support ATX/AT function by jumper setting

BIOS default is (ATX MODE)

Dimensions



338.58mm (L) x 126.39mm (W), 8 layers (single side)

Environment



Board level operating temperatures: -15˚C to 60˚C

Storage temperatures:-20˚C to 85˚C

Relative Humidity



10% to 90% (operating, non-condensing)

5% to 95% (non-operating, non-condensing)

Certification



CE approval

FCC Class A

CB/CCC


Ordering Information:

PEAK-887VL2



PICMG 1.3 Full-size SBC, 4th Generation Intel® Core™ i7/i5/i3 Processors With Max 16GB, DDR3L DIMM, VGA integration, Intel® Gigabit Ethernet x2, USB 3.0 x4, SATA 3.0 x3
