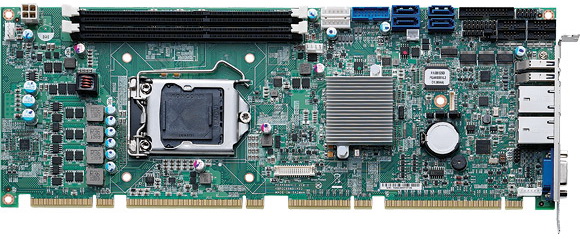

PEAK-886VL2

PICMG 1.3 Full-size Single Computing Board with Intel® Q77 Single Computing Board Intel® 3th Generation Core™ i7/ i5/ i3 Processors


Features:
◎ Scalable platform Intel® 3th generation Core™ i7/ i5/ i3 processor, Ivy Bridge + Non-ECC
◎ Intel® Q77 PCH chipset support PICMG 1.3 specification
◎ Support Dual channel DDR3 with NON-ECC DIMMs 1333/1600MHz up to 16GB
◎ Support PCIex16, 4PCIe x1, 4USB3.0/ 4USB2.0, 4SATA3.0/ 2SATA2.0 and GbE
◎ Display support for VGA, DVI, HDMI, DisplayPort
◎ Dimension 338.58mm (L) x 126.39mm (W) (8 layers single side)


Solution:

The PEAK-886VL2 is a PICMG1.3 Full-size single computing board featuring Intel® Q77 PCH chipset supports Intel® 3th generation Intel® Core™ processor with Dual DDR3 DIMM socket up to 16GB DDR3 1333/ 1600MHz SDRAM with Non-ECC support and integrated HD Graphic controller.

The Intel® Q77 PCH manages SATA2.0/3.0 Ports. Furthermore, it supports others versatile I/O ports such as legacy four series ports, KB/Mouse interface , optional TPM function, eight USB ports, four PCI express x1 interface and two Intel® PCI express Gigabit LAN port. It offers a great solution for advance industrial application that requires superb display and processing performance.



Model No.



PEAK-886VL2

CPU Support



Support LGA1155, 3th generation Intel® Core™ processor

Intel® Core™ i7-3770 (4C/8M cache/3.4GHz/Max. TDP 77W)

Intel® Core™ i5-3550S (4C/6M cache/3.0GHz/Max. TDP 65W)

Intel® Core™ i3-3220 (2C/3M cache/2.4GHz/Max. TDP 55W)

Intel® Pentium® G2120 (2C/3M cache/1.6GHz/Max. TDP 65W)

Main Memory



Dual DDR3/DIMMs, support 1333/1600MHz non-ECC system memory up to 16GB

Chipset



Intel® Q77 PCH chipset

BIOS



AMI system BIOS, Plug and play support

Advanced power management and advanced configuration & power

LAN



Intel® 82579LM Gigabit Ethernet

Intel® 82574l Gigabit Ethernet

Support PXE boot from LAN, wake on LAN function

Display



Intel® HD graphics with DX11 support up to two independent displays

Supports VGA and DVI / HDMI / Display port interface

Audio



High Definition Audio interface with PIN header

I/O Interface



USB 3.0 2 Ports through I/O bracket / USB 2.0: 4 ports through backplane / 2 Port through 2.5mm JST connectors

Six SATA Port: Four SATA 3.0 / Two SATA 2.0. (Support RAID0 / 1/ 5/ 10 and Intel® Rapid Storage Technology AHCI)

One PCI-EXPRESS X 16 / Four PEI-EXPRESS X 1

Two RJ45 Gigabit Ethernet LAN ports

Four series ports (COM2 Supports RS232/422/485, RI pin can supply 5V/12V voltage)

Parallel port through box header

Keyboard / Mouse interface

HDA interface through pin header for audio function (optional)

On board pin header for IRDA

TPM support(option)

Power Requirements



+12V, +5V, +3.3V, +5VSB, +3.3V RTC power

Power source form backplane through golden finger and AUX +12V

Support ATX/AT Power supplies

Dimensions



338.58mm (L) x 126.39mm (W)

Environment



Board level operating temperatures: 0˚C to 60˚C

Storage temperatures:-20˚C to 80˚C

Relative Humidity



10% to 90% (operating, non-condensing)

5% to 95% (non-operating, non-condensing)

Certification



Meet CE

FCC Class A


Ordering Information:

PEAK-886VL2



PICMG 1.3 Full-size Single Computing Board with Intel® Q77 Single Computing Board Intel® 3th Generation Core™ i7/ i5/ i3 Processors
