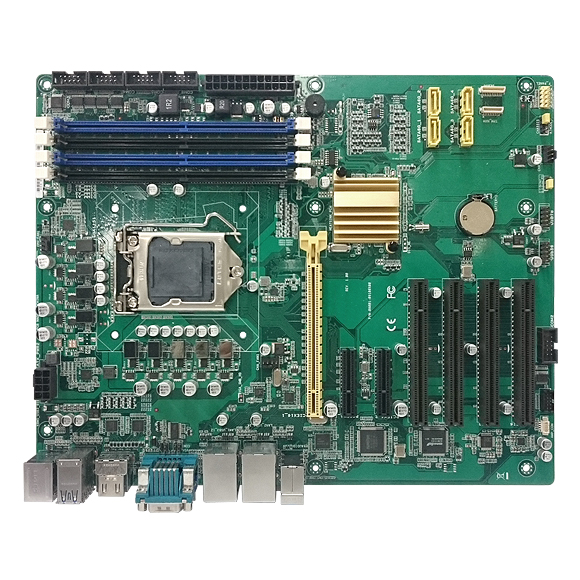

NEX-912

ATX, Socket LGA1151 6th Gen. Intel® Core™ & Celeron® Processor Product Family with Q170, 4 x DDR4, VGA/2 x HDMI, PCIe x16/2 x PCIe x4/4 x PCI, 2 x GbE/10 x USB/6 x COM


Features:
◎ Support LGA1151 for 6th generation Intel® Core™ i7/i5/i3 and Intel® Celeron® processors (codenamed Skylake) or next generation Intel® Core™/Celeron® processors
◎ Intel® Q170 PCH chipset
◎ 4 x 288-pin DIMM DDR4 up to 64GB
◎ Support Triple independent display: 2xHDMI/VGA
◎ 2 x Intel® GbE
◎ 4 x SATA 3.0
◎ 6 x COM, 14 x USB 3.0/2.0, 4-in/4-out GPIO, HD Audio
◎ 1 x PCIe x16, 2 x PCIe x4, 4 x PCI
◎ TPM supported
◎ Support AT/ATX mode by ATX power input


Solution:

NEX-912 is an industrial motherboard with standard ATX form factor, which support 6th generation Intel® Core™ i7/i5/i3 processors and Intel® Celeron® processors (codenamed Skylake) and as well as next generation Intel® Core™/Celeron® processors. NEX-912 supports dual channel DDR4 2133/1867MHz memory in four long DIMM slots up to 64GB system memory and PCIe x16 (gen. 3.0).
The Q170 PCH supports triple displays by three DDI (digital display interfaces) using among two HDMI and one VGA ports. Intel® Q70 PCH manages up to 4 x SATA 3.0 with RAID 0/1/5/10 supported and performs up to 14 x USB (10 x USB 3.0/4 x USB 2.0) ports; and dual Intel® GbE ports and up to six Series ports including one supporting RS-232/422/485. NEX-912 supports two PCIex4 and 4 x PCI slots. TPM function is as optional. NEX-912 could be integrated into 1U/ 2U/ 4U rack mounted chassis or desktop tower as completed system solution for widely industrial applications in the new era of digital infrastructure.



Model No.



NEX-912

CPU Support



Socket LGA1151, Intel® 6th generation Core™ i7/i5/i3 processor and Intel® Celeron® processors

Main Memory



4 x 288-pin dual channel long DIMMs support DDR4 2133/1867MHz up to 64GB, non-ECC, un-buffered system memory

Chipset



Intel® Q170 PCH

BIOS



AMI system BIOS, Plug and play support

LAN



2 x RJ45 connectors with LED

LAN1:Intel® PHYI217LM GbE LAN(support AMT 9.0)

LAN2:Intel® I211AT GbE LAN

Support PXE boot from LAN, wake on LAN function

Display



2 x HDMI 1.4 connector (resolution up to 4096 x 2160@24Hz)

1 x VGA (resolution up to 1920 x 1200@60Hz)

Expansion Slot



1 x PCIe x16 (gen. 3.0)

2 x PCIe x4

4 x PCI

Edge I/O Interface



2 x HDMI

1 x VGA

2 x RJ45 connector with GbE transformer inside & LED

10 x USB 3.0(blue)

1 x RS-232/422/485 DB-9 connector (COM1)

1 x Combo PS/2 KB and MS

1 x Audio Jack: Line-in/Line-out/Mic-in

I/O Interface



USB 2.0: 4 ports internal pin-header

Serial: 5 ports RS232 internal pin-header

SATA HDD: 4 ports SATA 6.0Gb/s, support RAID 0/1/5/10

GPIO: supports 4 x GPI and 4 x GPO

Interface



1 Pin header for TPM

1 x 4-pin CPU fan connector; 2 x 4-pin chassis fan connector

1 x Front panal header; 1 x clear CMOS jumper

1 x Chassis Intrusion

1 x BIOS flash header (2x4P, P=1.27mm)

System Monitor



4 voltage (for +3.3V, +5V, +12V, Vcore)

2 temperatures (CPU, system temperatures)

2 fans speed (CPU and system fans)

Power Requirements



1 x 24-pin ATX connector

1 x 8-pin ATX 12V power connector

Dimensions



ATX

305mm (L) x 244mm (W) (12” x 9.6”)

Environment



Board level operating temperatures: 0˚C to 60˚C

Storage temperatures:-40˚C to 85˚C

Relative Humidity



0% to 90% (operating, non-condensing)

5% to 95% (non-operating, non-condensing)

Certification



Meet CE

FCC Class A


Ordering Information:

NEX-912



ATX, socket LGA1151 6th gen. Intel® Core™ & Celeron® processor product family with Q170, 4 x DDR4, VGA/2 x HDMI, PCIe x16/2 x PCIe x4/4 x PCI, 2 x GbE /10 x USB/6 x COM
