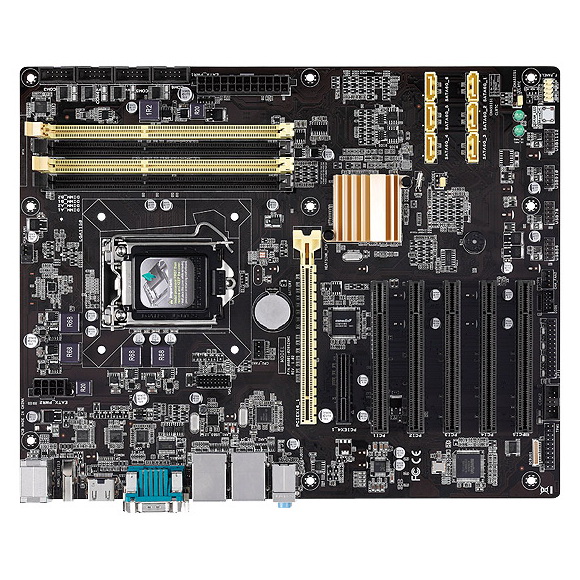

NEX-910

ATX, Socket LGA1150 4th Gen. Intel® Core™ & Celeron® Processor Product Family with Q87, 4 x DDR3, VGA/2 x HDMI/DVI-D, PCIe x16/PCIe x4/5 x PCI, 2 x GbE /14 x USB/6 x COM


Features:
◎ Support LGA1150 for 4th generation Intel® Core™ i7/i5/i3 and Intel® Celeron® processors
◎ Intel® Q87 PCH chipset
◎ 4 x 240-pin DIMM DDR3 up to 32GB
◎ Support dual/Triple independent display: 2xHDMI/VGA/DVI-D
◎ 2 x Intel® GbE
◎ 6 x SATA 3.0/2.0
◎ 6 x COM, 14 x USB 3.0/2.0, 4-in/4-out GPIO, HD Audio
◎ 1 x PCIe x16, 1 x PCIe x4, 5 x PCI
◎ TPM supported
◎ Support AT/ATX mode by ATX power input


Solution:

NEX-910 is an industrial motherboard with standard ATX form factor, which support 4th generation Intel® Core™ i7/i5/i3 processors and Intel® Celeron® processors. NEX-910 supports dual channel DDR3 1600/1333MHz memory in four long DIMM slots up to 32GB system memory and PCIe x16 (gen. 3.0).
The Q87 PCH supports multiple displays by three DDI (digital display interfaces) using among two HDMI, one VGA and one DVI-D ports. Intel® Q87 PCH manages up to 6 x SATA 3.0 and performs up to 14 x USB (4 x USB 3.0/ 10 x USB 2.0) ports, dual Intel® GbE ports and up to 6 Series ports including 1 x RS-232/422/485 and 5 x RS-232. NEX-910 supports PCIe x4 and 5 x PCI slots; and TPM function is as optional. NEX-910 could be integrated into 1U/ 2U/ 4U rack mounted chassis or Desktop Tower as completed system solution for widely industrial applications in the new era of digital infrastructure.



Model No.



NEX-910

CPU Support



Socket LGA1150, Intel® 4th generation Core™ i7/i5/i3 processor and Intel® Celeron® processors

Main Memory



4 x 240-pin dual channel long DIMMs support DDR3 1600/1333MHz up to 32GB, non-ECC, un-buffered system memory

Chipset



Intel® Q87 PCH

BIOS



AMI system BIOS, Plug and play support

LAN



2 x RJ45 connectors with LED

LAN1:Intel® PHYI217LM GbE LAN(support AMT 9.0)

LAN2:Intel® I211AT GbE LAN

Support PXE boot from LAN, wake on LAN function

Display



2 x HDMI 1.4 connector (resolution up to 4096 x 2160@24Hz)

1 x DVI-D (resolution up to 1920 x 1200@60Hz)

1 x Internal VGA pin-header (resolution up to 1920 x 1200@60Hz)

Expansion Slot



1 x PCIe x16 (gen. 3.0)

1 x PCIe x4

5 x PCI

Edge I/O Interface



2 x HDMI

1 x DVI-D

2 x RJ45 with dual stack USB 3.0(blue) connectors

1 x Dual stack USB 2.0(black)

1 x RS-232/422/485 DB-9 connector (COM1, supports 5/12V on RI pin)

1 x combo PS/2 KB and MS

1 x Audio Jack: Line-in/Line-out/Mic-in

I/O Interface



USB 2.0: 8 ports internal pin-header

Serial: 5 ports RS232 internal pin-header

SATA HDD: 6 ports SATA 6.0Gb/s, support RAID 0/1/5/10

GPIO: supports 4 x GPI and 4 x GPO

Interface



1 x LPT connector

1 Pin header for TPM1.2/FW3.19

1 x 4-pin CPU fan connector; 2 x 4-pin chassis fan connector

1 x Front panal header; 1 x clear CMOS jumper

1 x BIOS flash header (2x4P, P=1.27mm)

System Monitor



3 voltage (for +5V, +12V, Vcore)

2 temperatures (CPU, system temperatures)

2 fans speed (CPU and system fans)

Power Requirements



1 x 24-pin ATX connector

1 x 8-pin ATX 12V power connector

Dimensions



ATX

305mm (L) x 244mm (W) (12” x 9.6”)

Environment



Board level operating temperatures: 0˚C to 60˚C

Storage temperatures:-40˚C to 85˚C

Relative Humidity



0% to 90% (operating, non-condensing)

5% to 95% (non-operating, non-condensing)

Certification



Meet CE

FCC Class A


Ordering Information:

NEX-910



ATX, socket LGA1150 4th gen. Intel® Core™ & Celeron® processor product family with Q87, 4 x DDR3, VGA/2 x HDMI/DVI-D, PCIe x16/ PCIe x4/5 x PCI, 2 x GbE /14 x USB/6 x COM
