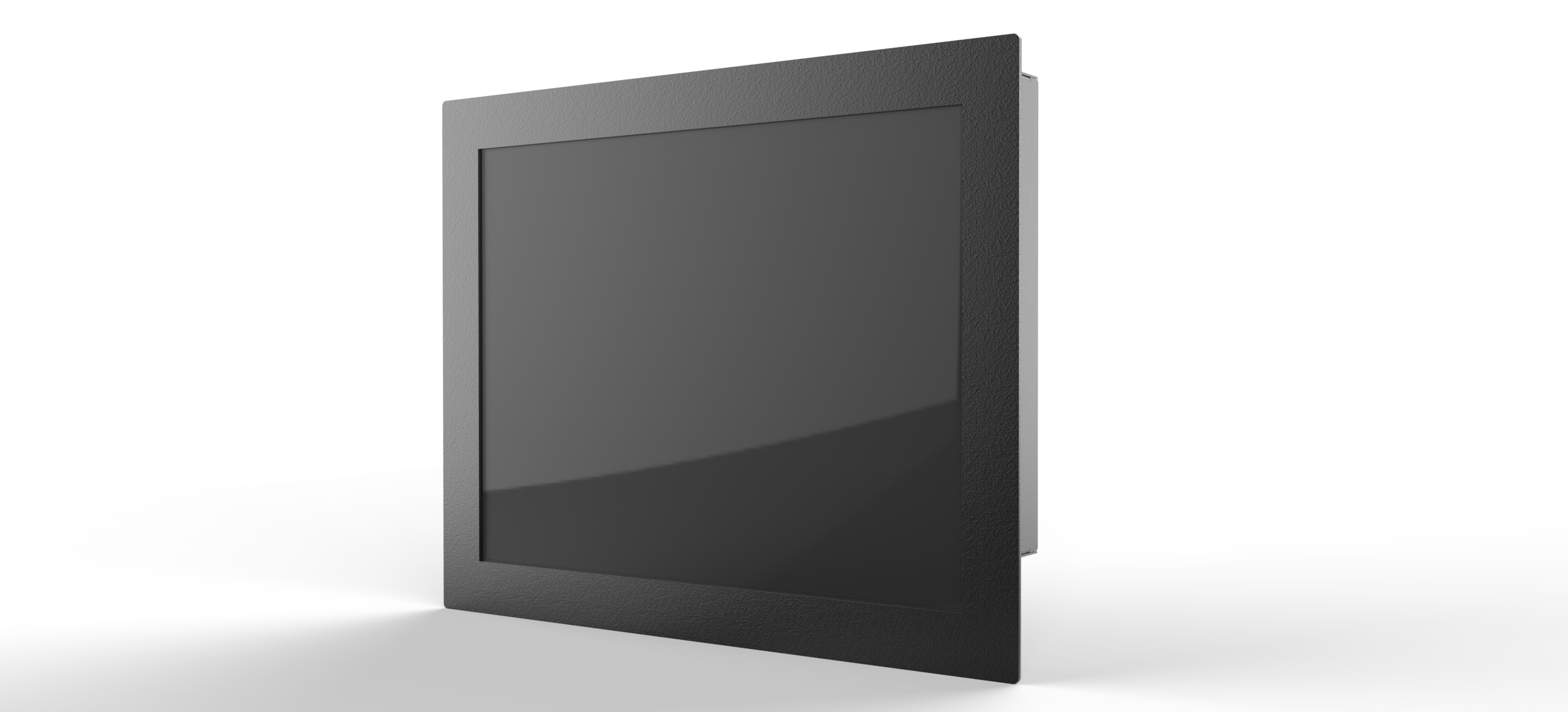

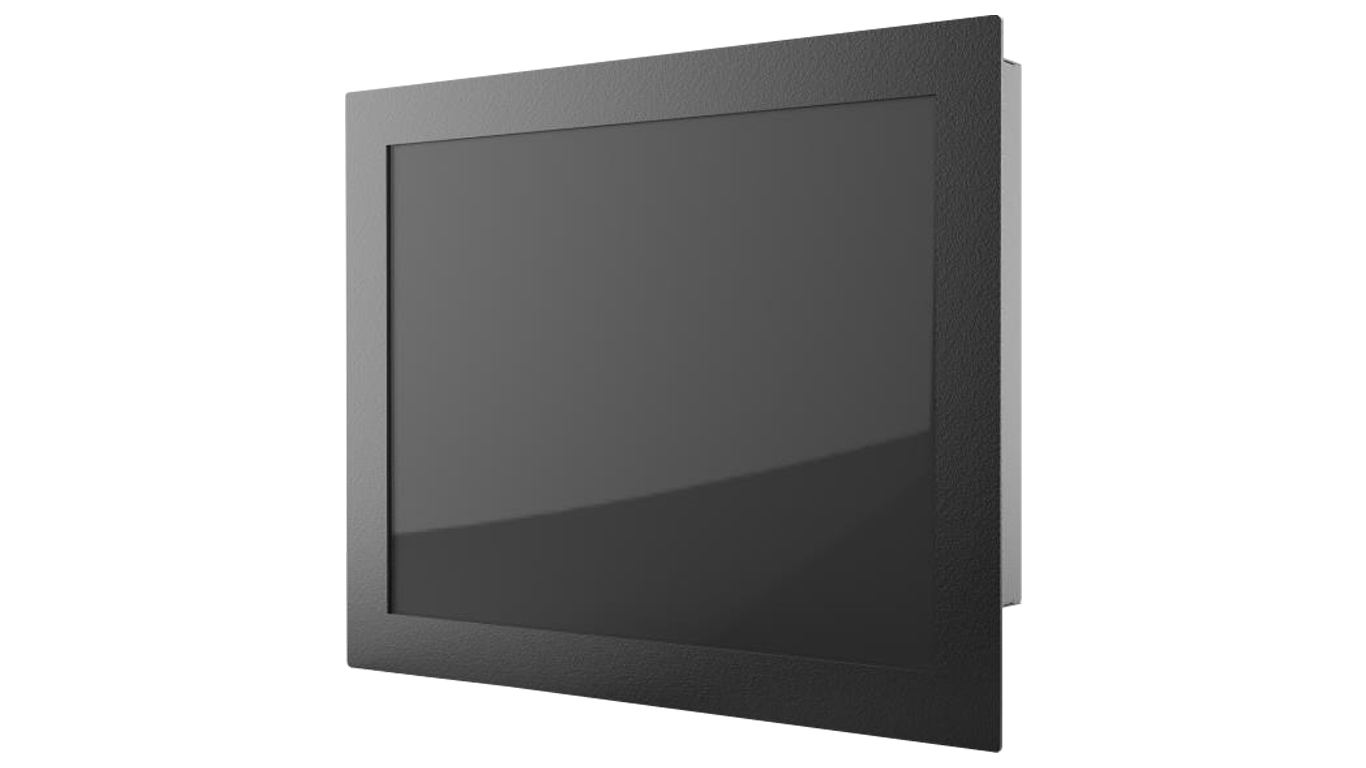

IDM-1580

15" Industrial Sunlight Readable Display Monitor with Touch Screen, VGA


Features:
◎ 15” LCD supports 1024 x 768 pixels, high brightness 1500 nits
◎ Supports Full-function OSD Keys to Optimize the Display
◎ 15 pin D-sub Analog RGB 0.7Vp-p/75 Ohm signal input
◎ Low power consumption
◎ Slim and Flat Ergonomic Design
◎ Optional 5 Wire resistive touch screen
◎ Supports Panel Wall Mount, VESA Mount

The IDM-1580 Industrial Sunlight Readable monitor offers a standard 15" TFT LCD screen supporting 1024 x 768 pixels and 1500nits, a sturdy and ready to mount metal chassis, an optional 5 wire resistive touch screen. Each of the monitors come complete with signal input cables, an OSD control, and a power supply making it to ready to install into the end application. The IDM-1580 is specially designed for commercial and industrial applications. It provides system resellers and solution integrators a wide choice of added value for their products, such as retail or ticketing kiosks, ATM, arcade games, vending machines, industrial equipment and instrumentation.



Model No.



IDM-1580

Construction



Black Front Bezel, Steel Chassis

Display



15" Color Active TFT Flat Panel Display

Luminance



1500 cd/m2(Typ.)

Viewing Angle(H/V)



160/140

Resolution



1024 x 768, 16.2M colors

Pixel Pitch



0.297 X 0.297 mm

Backlight Lifetime



LED Backlight, 30,000 Hrs

OSD Controls



Automatic Screen, Setup (OSD), Brightness, Contrast, Horizontal/Vertical Position, Color Temperature

SYSTEM I/O



VGA x 1; 12 VDC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only)

External Power Adapter



DC 12V, with External AC-DC Adapter (100-240V)

Optional Touch Screen



5 Wire resistive touch screen with USB Interface

Dimensions (WxDxH)



364mm x 289mm x 46mm

Operating Temperature



0 ~ 50˚C

Storage Temperature



-20 ~ 60˚C

Relative Humidity



10~90%, non-condensing

Certification



CE

Vibration



1G peak, 5~500Hz (Random)

Shock



15G peak acceleration (11 msec. Duration)

Ordering Information:

IDM-1580



15” Industrial Sunlight Readable Monitor

IDM-1580T



15” Industrial Sunlight Readable Monitor with 5 Wire resistive touch screen
