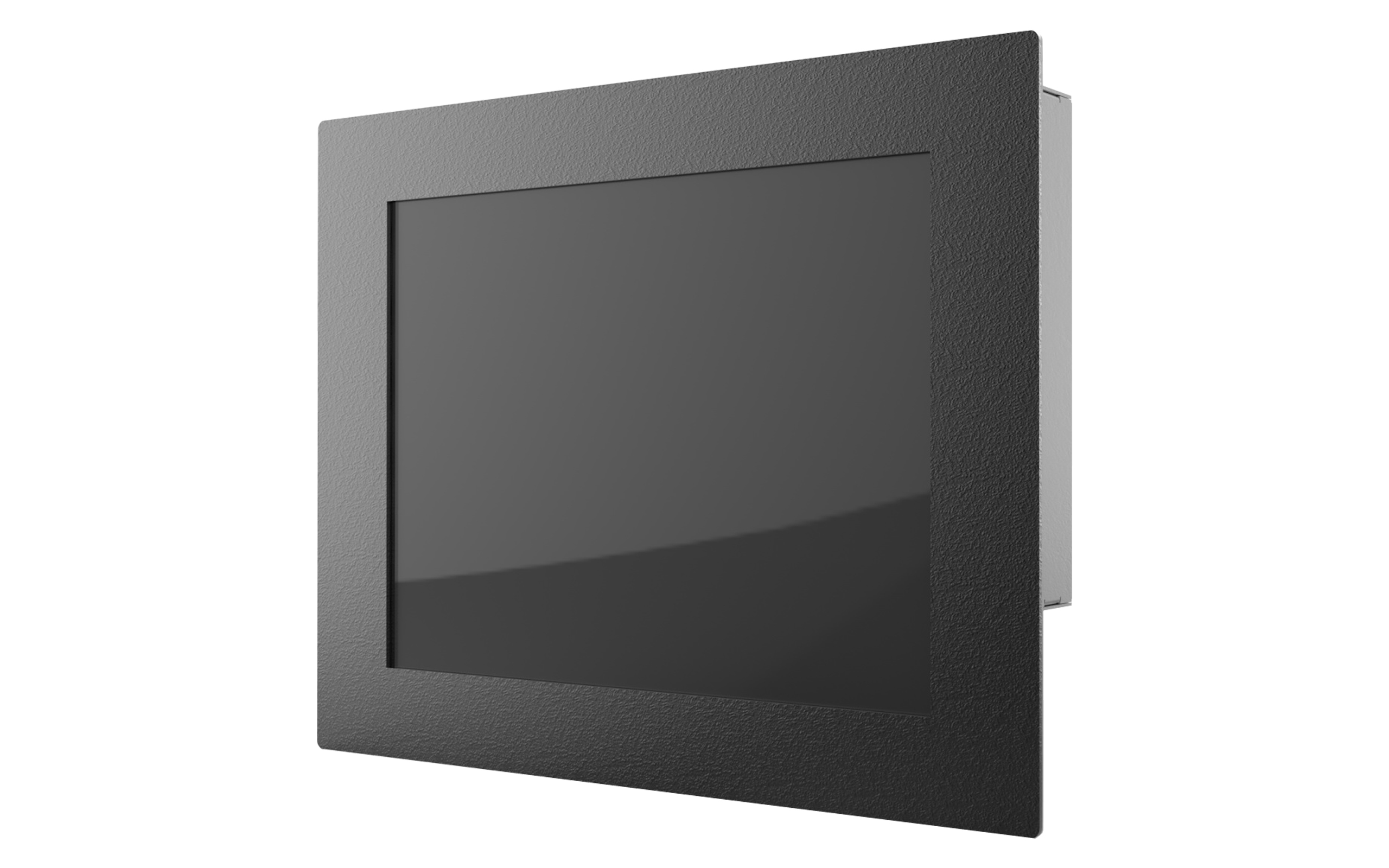

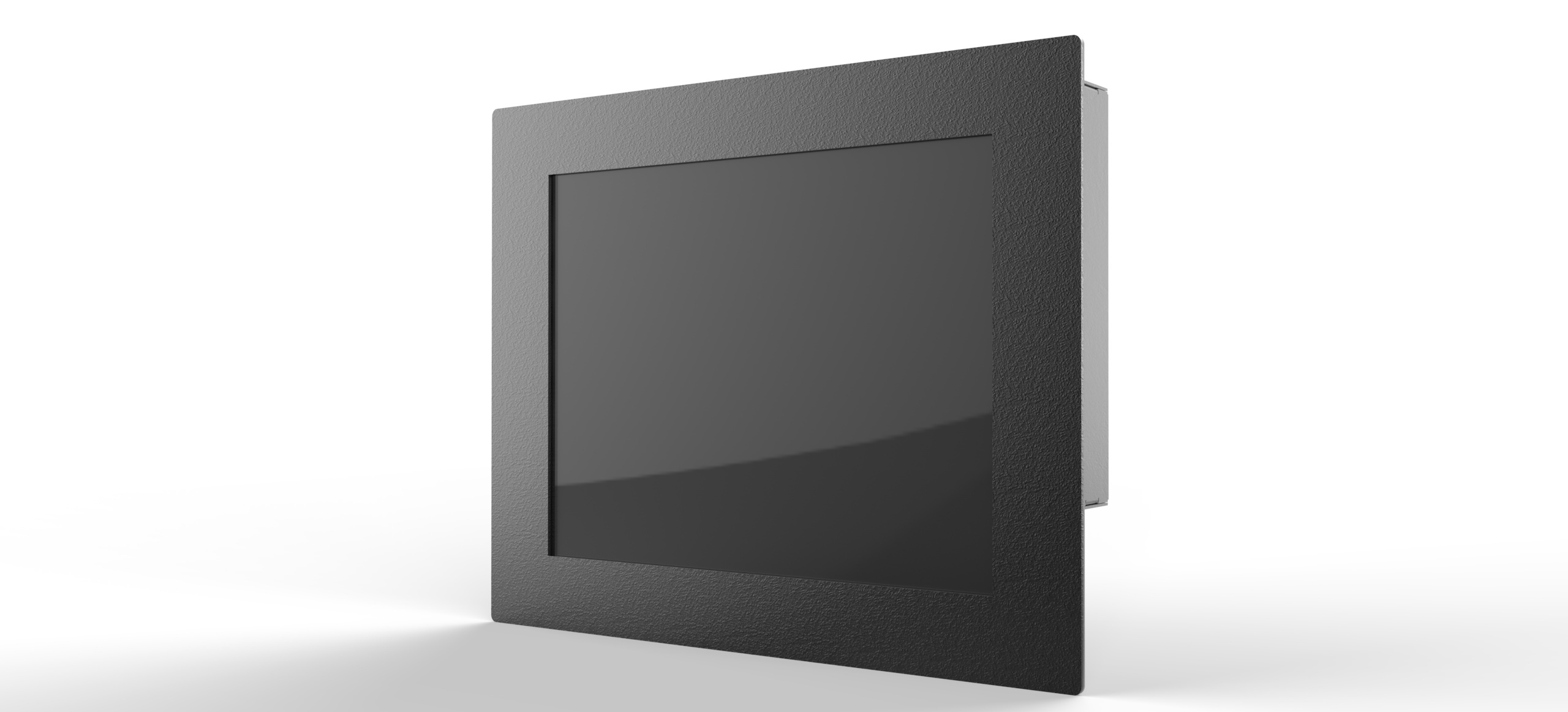

IDM-1010

10.4" Industrial Display Monitor with Touch Screen, VGA


Features:
◎ 10.4” LCD supports 800 x 600 pixels
◎ Supports Full-function OSD Keys to Optimize the Display
◎ 15 pin D-sub Analog RGB 0.7Vp-p/75 Ohm signal input
◎ Low power consumption
◎ Slim and Flat Ergonomic Design
◎ Optional 4 Wire resistive touch screen
◎ Power Supply input DC 12V/24V
◎ Supports Panel Mount, Wall Mount, VESA Mount


Solution: ,

The IDM-1010 is a 10.4” industrial monitor integrated with an optional 4 wire resistive touch screen. Features a 10.4” high quality SVGA TFT LCD flat panel, it presents a large display area as well as vivid and sharp images for your HMI. With Direct-VGA signal transmission, it allows Any VGA control card to be used in your system. The IDM-1010 industrial monitor is designed to meet the demanding performance requirements of business and industrial applications including factory / machine / warehouse / home automation, kiosk, network communication and information terminal.



Model No.



IDM-1010

Construction



Black Front Bezel, Sliver Steel Chassis

Display



10.4" Color Active TFT Flat Panel Display

Luminance



400 cd/m2

Viewing Angle(H/V)



160/140

Resolutions



800 x 600, 16.2M / 262K colors

Pixel Pitch



0.264 x 0.264 mm

Backlight Lifetime



LED Backlight, 50,000 Hrs

OSD Controls



Automatic Screen, Setup (OSD), Brightness, Contrast, Horizontal/Vertical Position, Color Temperature

SYSTEM I/O



VGA x 1; 12 VDC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the Connection to enable touch usage only)

External Power Adapter



DC 12V, with External AC-DC Adapter (100-240V)

Optional Touch Screen



4 Wire Resistive with USB Interface

Dimensions (WxDxH)



279.4mm x 220mm x 45.5mm

Operating Temperature



0 ~ 50˚C

Storage Temperature



-20 ~ 60˚C

Relative Humidity



20~80%, non-condensing

Certification



CE

Vibration



1G peak, 5~500Hz (Random)

Shock



15G peak acceleration (11 msec. Duration)

Ordering Information:

IDM-1010



10.4" Industrial Display Monitor

IDM-1010T



10.4" Industrial Display Monitor with 4 Wire Resistive touch screen
