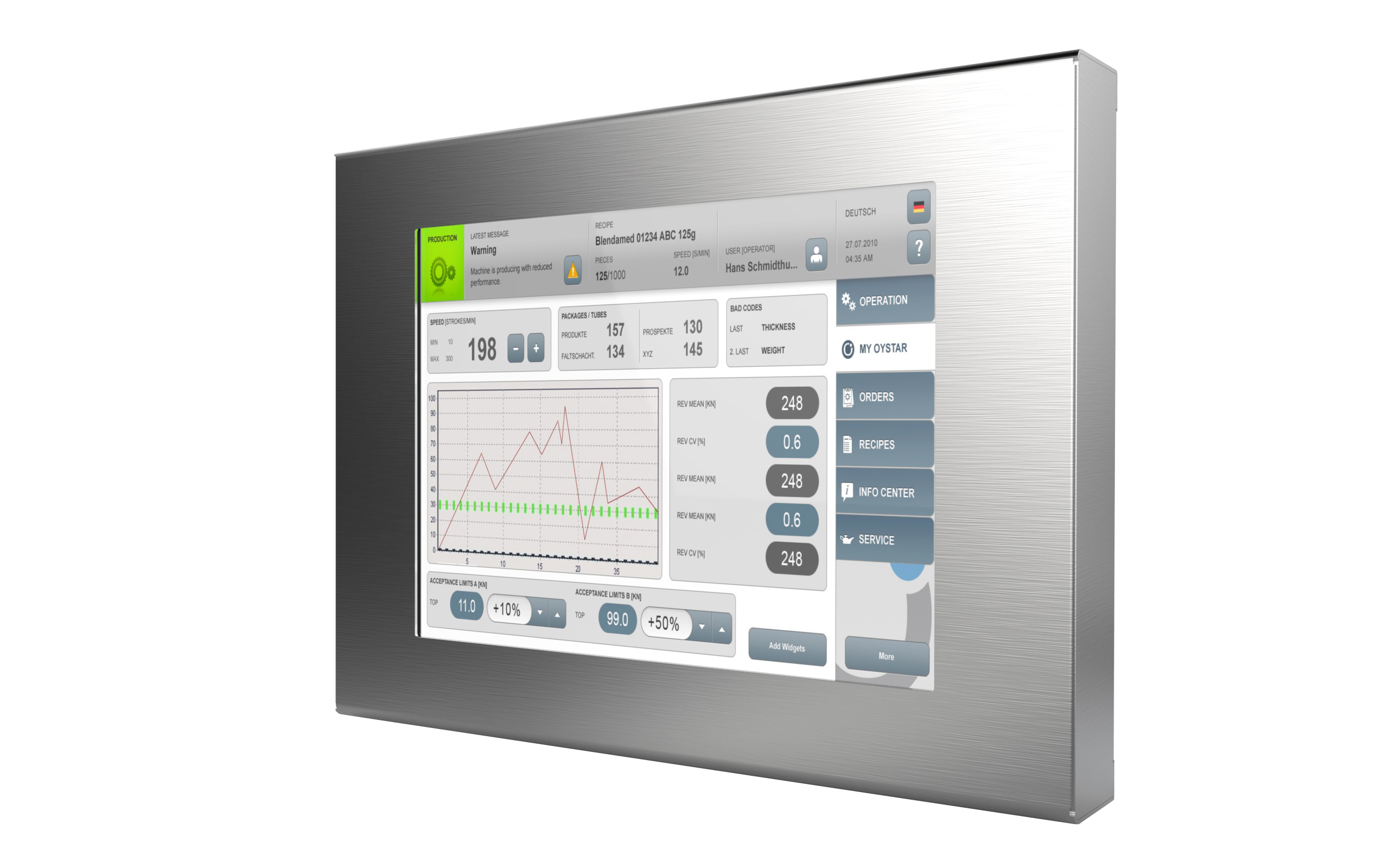

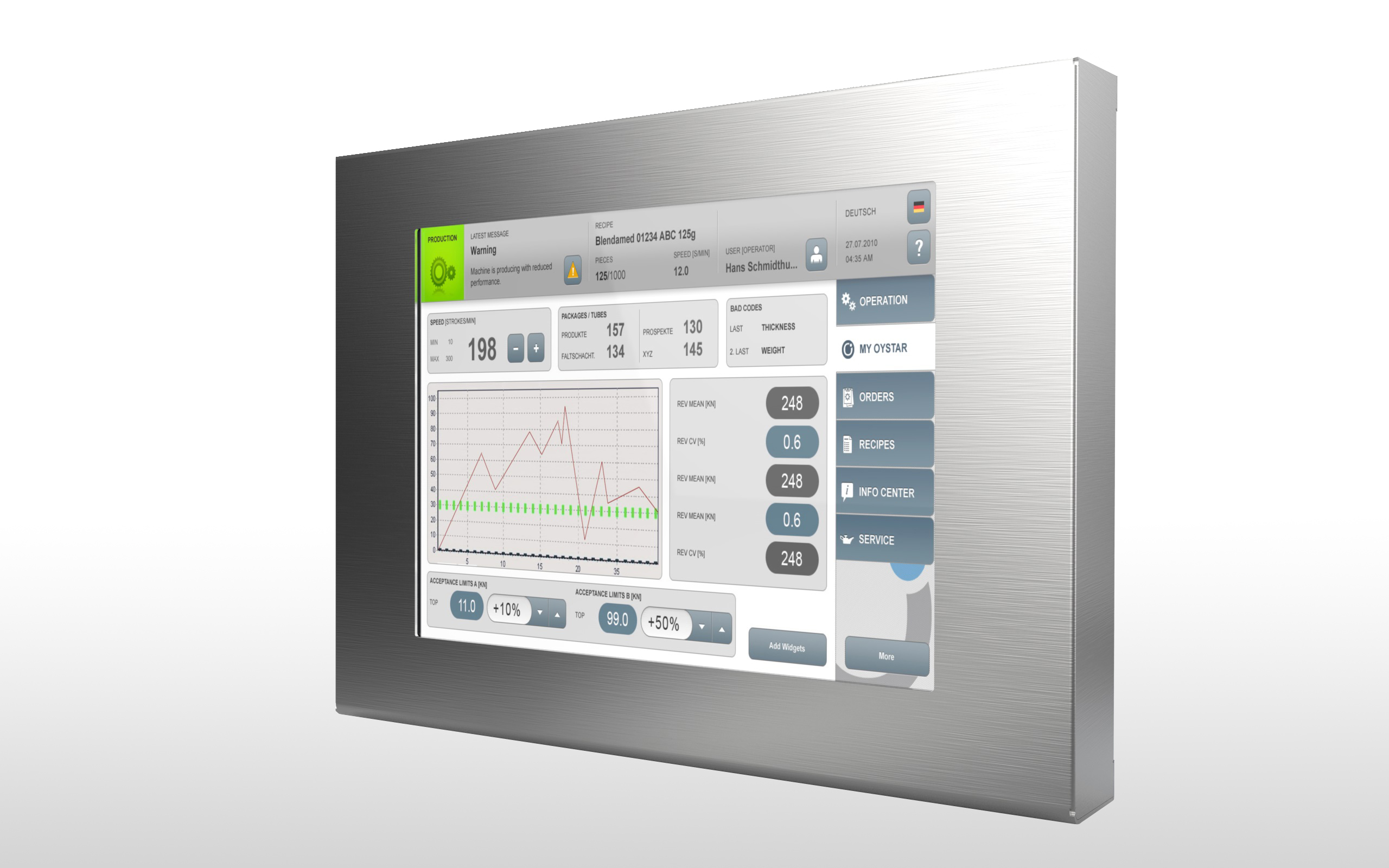

STL-1280

12.1" IP65 Stainless Steel & Sunlight Readable Monitor with Touch Screen, VGA


Features:
◎ 12.1”LCD supports 800 x 600 pixels, high brightness 1200nits
◎ Supports Full-function OSD Keys to Optimize the Display
◎ 15 pin D-sub Analog RGB 0.7Vp-p/75 Ohm signal input
◎ Low power consumption
◎ Slim and Flat Ergonomic Design
◎ Power Supply input DC 12V/24V
◎ VESA Mount

The STL-1280 is a 12.1” industrial Sunlight Readable monitor integrated with an optional 5 wire resistive touch screen. Features a 12.1” high quality SVGA TFT LCD flat panel, it presents a large display area as well as vivid and sharp images for your HMI. With Direct-VGA signal transmission, it allows Any VGA control card to be used in your system. The STL-1280 industrial monitor is designed to meet the demanding performance requirements of business and industrial applications including factory / machine / warehouse / home automation, kiosk, network communication and information terminal.



Model No.



STL-1280

Construction



304 Stainless Steel, Full IP65

Display



12.1" Color Active TFT Flat Panel Display

Luminance



1200 cd/m2

Viewing Angle(H/V)



160/140

Resolutions



800 x 600, 16.2M / 262K colors

Pixel Pitch



0.3075 x 0.3075 mm

Backlight Lifetime



LED Backlight, 30,000 Hrs

OSD Controls



Automatic Screen, Setup (OSD), Brightness, Contrast, Horizontal/Vertical Position, Color Temperature

SYSTEM I/O







VGA x 1; 12 VDC Jack x 1

USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the Connection to enable touch usage only)

IP65 (Waterproof I/O with M12 connector)

External Power Adapter



DC 12V, with External AC-DC Adapter (100-240V)

Touch Screen



5 Wire Resistive with USB Interface

Dimensions (WxDxH)



345mm x 275.79mm x 62.5mm

Operating Temperature



0 ~ 50 ℃

Storage Temperature



-20 ~ 60 ℃

Relative Humidity



20~80%, non-condensing

Certification



CE

Vibration



1G peak, 5~500Hz (Random)

Shock



15G peak acceleration (11 msec. Duration)

Ordering Information:

STL-1280



12.1” IP65 Stainless Steel & Sunlight Readable Monitor
