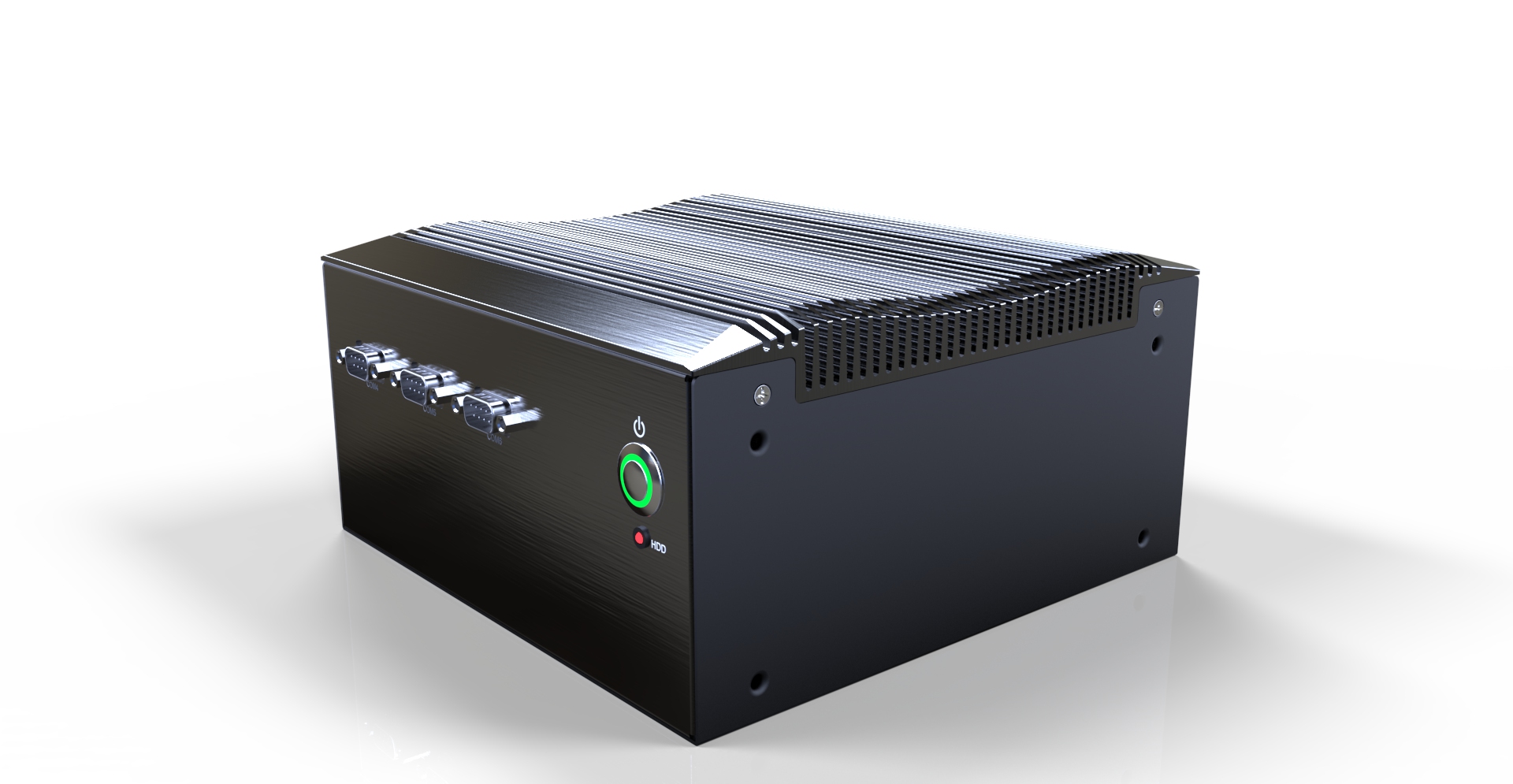

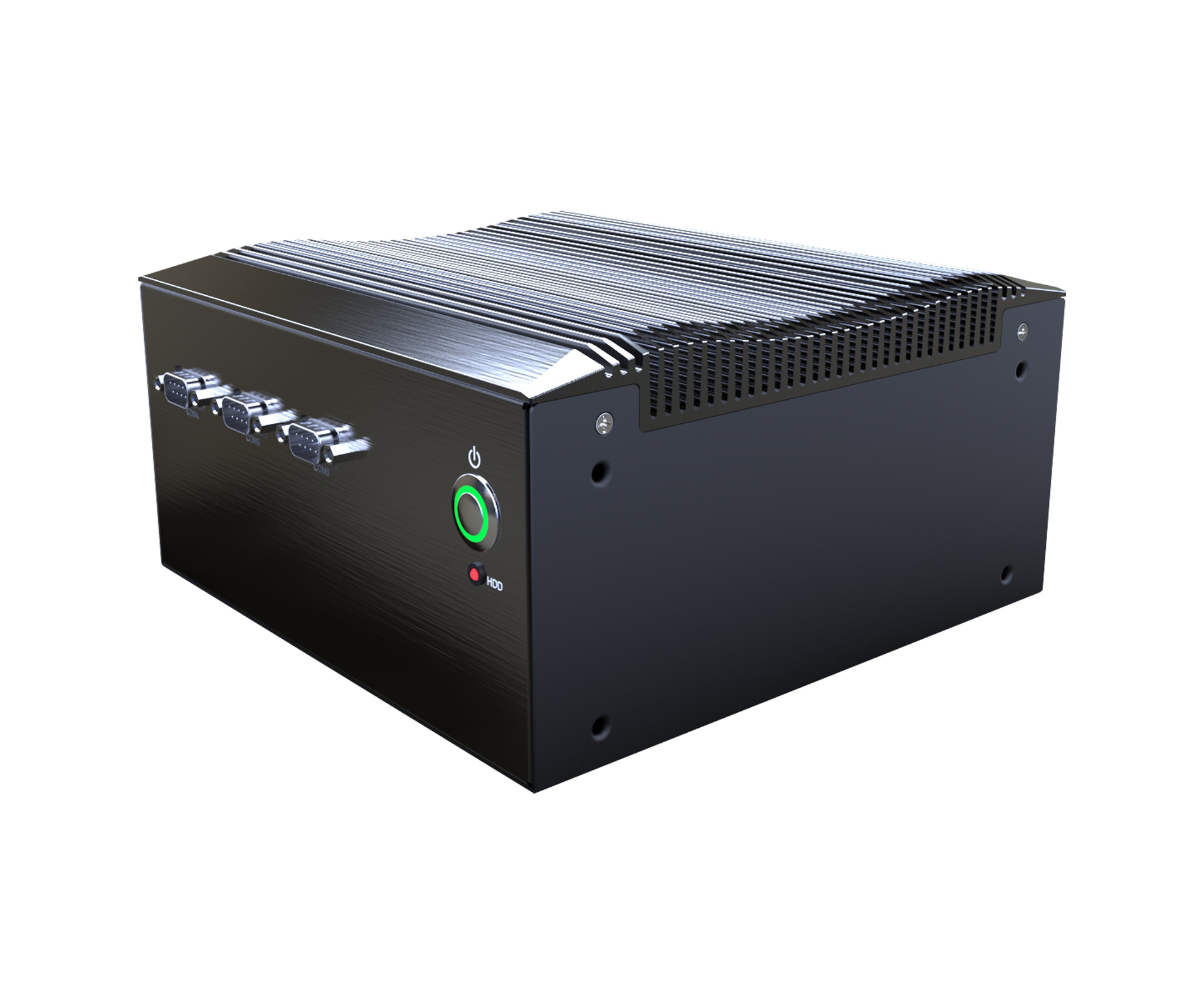

IPS-3050

Intel® Celeron® Processor N3160 Quad Core Fanless System


Feature:
◎ Intel® Celeron® Processor N3160 Quad Core,1.6GHz
◎ 2 x display output:1xHDMI display+1xVGA port
◎ 2 x Realtek GbE LAN,Teaming and PXE
◎ 4 x USB 3.0
◎ 3 x DB9 for RS232/422/485, 3x DB9 for RS232
◎ 1 x Audio line in, 1 x Audio line out
◎ Support -5°C to 60°C extended operating temperature


Solution: ,

Powered by the latest generation of Intel® Celeron® Processor N3160 Quad Core, 1.6GHz (formerly codenamed “Braswell “), IPS-3050 presents intelligent PC-based controller and IOT gateway for factory automation. Up to 8G DDR3L memory, The IPS-3050 support operating temperature from -5 up to 60 degree C with typical DC input 12&24Vdc. The IPS-3050 has high integration ability with optional Mini-PCIe module and 6 x COM ports which makes it a reliable connection with devices in factory automation applications, IOT applications (with optional Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO).



Main System















System Board

Mini-ITX Form Factor , Dimension: 170 x 170 mm

CPU

Intel® Celeron® Braswell SoC

-       Celeron® N3160 quad core processor

Chipset

Intel® Braswell SoC

Memory Slots

Single channel DDR3L 1600 MHz SO-DIMM

Support up to 8 GB of system memory

Onboard Graphic

8th Gen. Intel® Graphics

Audio

High definition audio

LAN

2 x Realtek RTL8111G Gigabit Ethernet

Storage



Drive Bay

1 x mSATA SSD bay

I/O Connectors







1 x VGA, 1 x HDMI, 2 x LAN, 3 x COM(RS232/422/485), 4 x USB 3.0

1 x Audio line in, 1 x Audio line out

Power switch

Expansion





3 x COM (optional)

1 x Mini PCI-Express socket

Power Supply



12V~24V DC

Dimension



200mm x 200mm x 103.53mm

Environment







Storage Temperature: -30 ~ 85 ℃

Operating Temperature: -5 ~ 60 ℃

Relative Humidity: 10%~95%, non-condensing

Vibration





Random : 2Grms @ 5~500 Hz, IEC60068-2-64

Sinusoidal : 2Grms @ 5~500 Hz, IEC60068-2-6

Certifications





CE approval

FCC Class A

Optional Accessories:

SATA SSD



32GB, 64GB, 128GB

DDR3L RAM



2GB, 4GB, 8GB



Optional OS Installation:

Windows Embedded Standard 7 Runtime(WES7)



Ordering Information:

IPS-3050



Fanless Low Power PC
