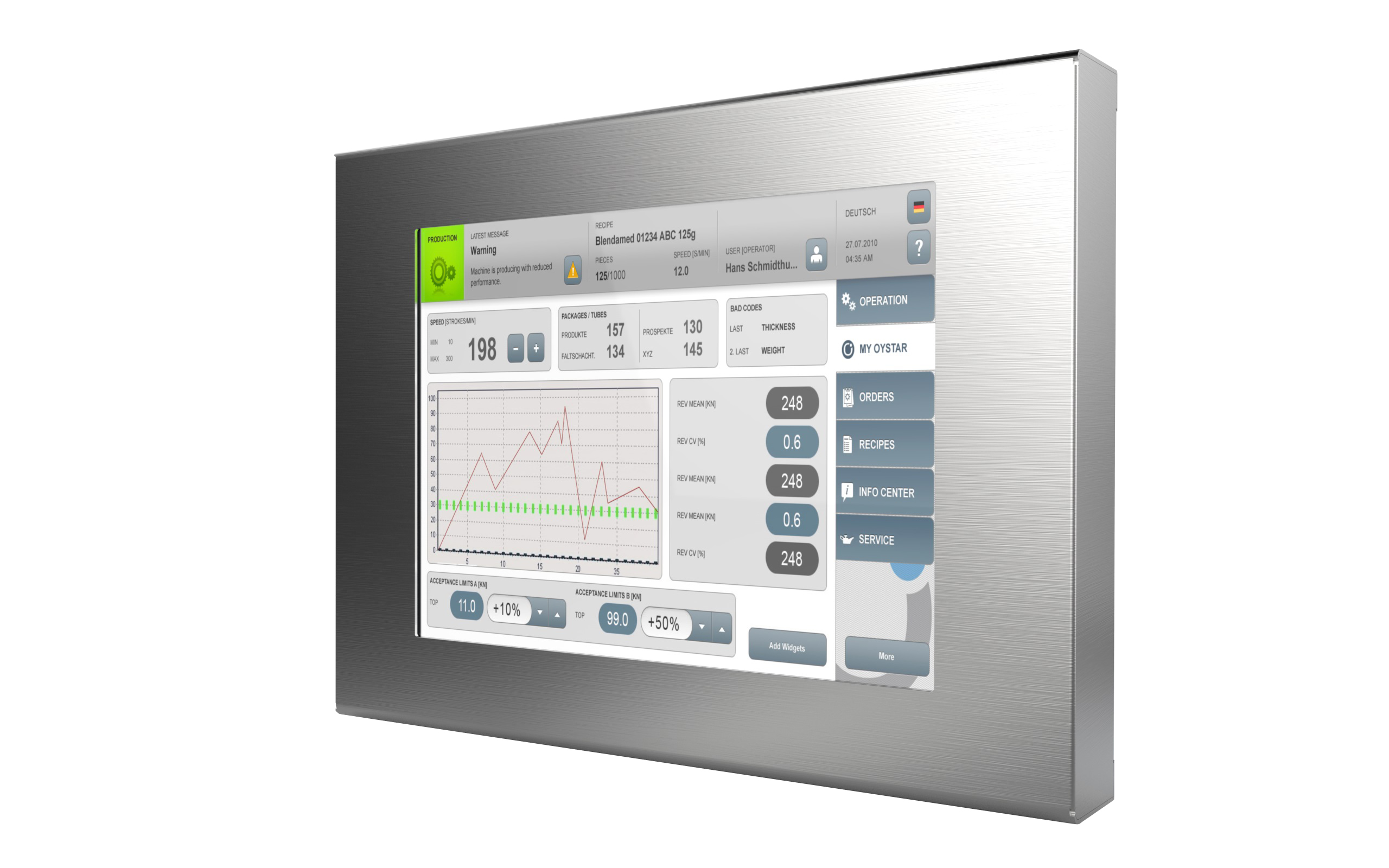

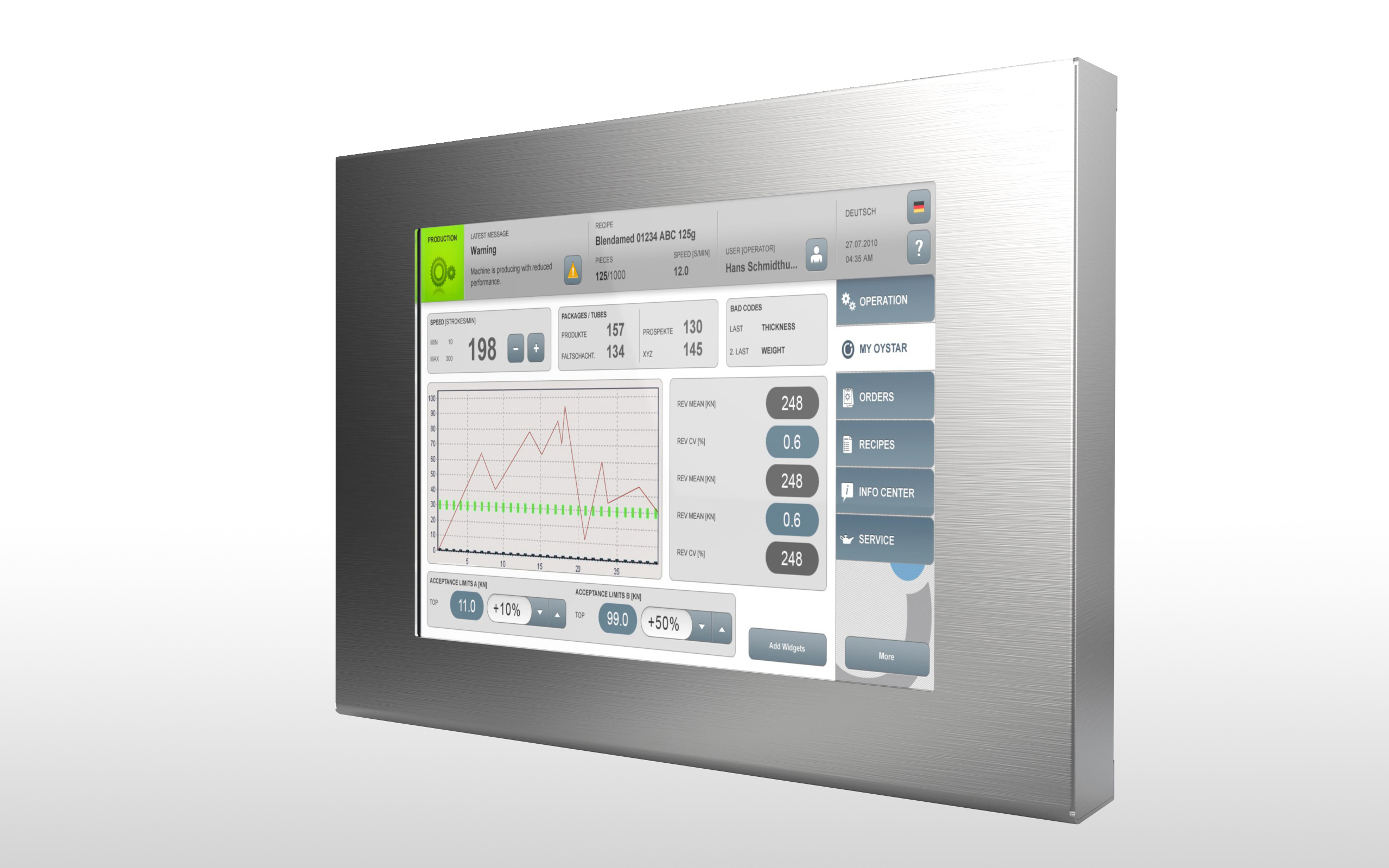

SPC-1950T

19” Waterproof IP65 Stainless Steel Panel PC


Features:
◎ 19” SXGA support 1280 x 1024 pixels
◎ Intel® Pentium®/Celeron® Braswell SoC Processor
◎ 5 Wire resistive touch screen
◎ IP65 (Waterproof I/O with M12 connector)
◎ VESA Mount

The SPC-1950T panel pc computer is an all-in-one and compact system designed around a highly integrated Intel® Graphics Media Accelerator (GMA) chipset motherboard computer which is equipped with a 19-inch TFT LCD display. Features an embedded Intel® Pentium®/Celeron® Braswell processor CPU, it offers a compact design for limited space environments to meet the demanding performance requirements of business and industrial applications including factory / warehouse / home automation, Digital Signage, kiosk, network communication and information terminal.



Display











Display Type

19” SXGA TFT LCD

Resolution

1280 x 1024 pixels

Luminance / Brightness

350 cd/m2 (w/o Touch), Optional 1500 cd/m2

Backlight MTBF

LED Backlight, 30,000 hrs

Touch Screen Type

5 Wire Resistive Touch Screen with USB Interface

Main System















System Board

Mini-ITX Form Factor, Dimension: 170 x 170 mm

CPU

Intel® Pentium®/Celeron® Braswell SoC

-       N3150/N3160 Quad core processor

Chipset

8th Gen. Intel® Graphics DX11, OGL3.2

Memory Slots

Dual channel DDR3L 1333/1600 MHz SO-DIMM

Support up to 8 GB of system memory

Onboard Graphic

Integrated graphic

Audio

High Definition Audio

LAN

Integrated Dual Realtek RTL8111G Gigabit Ethernet

Storage



Drive Bay

1 x mSATA SSD bay

I/O Connectors







1 x VGA, 2 x LAN

1 x COM(RS232/422/485)

2 x USB 2.0 port

Expansion



1 x Mini PCI-Express socket

Power Supply



12V~24V DC

Dimension



TBA

Environment







Storage Temperature: -20 ~ 60 ℃

Operating Temperature: 0 ~ 50 ℃

Relative Humidity: 10%~95%, non-condensing



Optional Accessories:

SATA SSD



32GB, 64GB, 128GB

DDR3L RAM



2GB, 4GB, 8GB




Optional OS Installation:

Windows Embedded Standard 7 Runtime(WES7)




Ordering Information:

SPC-1950T



19” Waterproof IP65 Stainless Steel Panel PC
