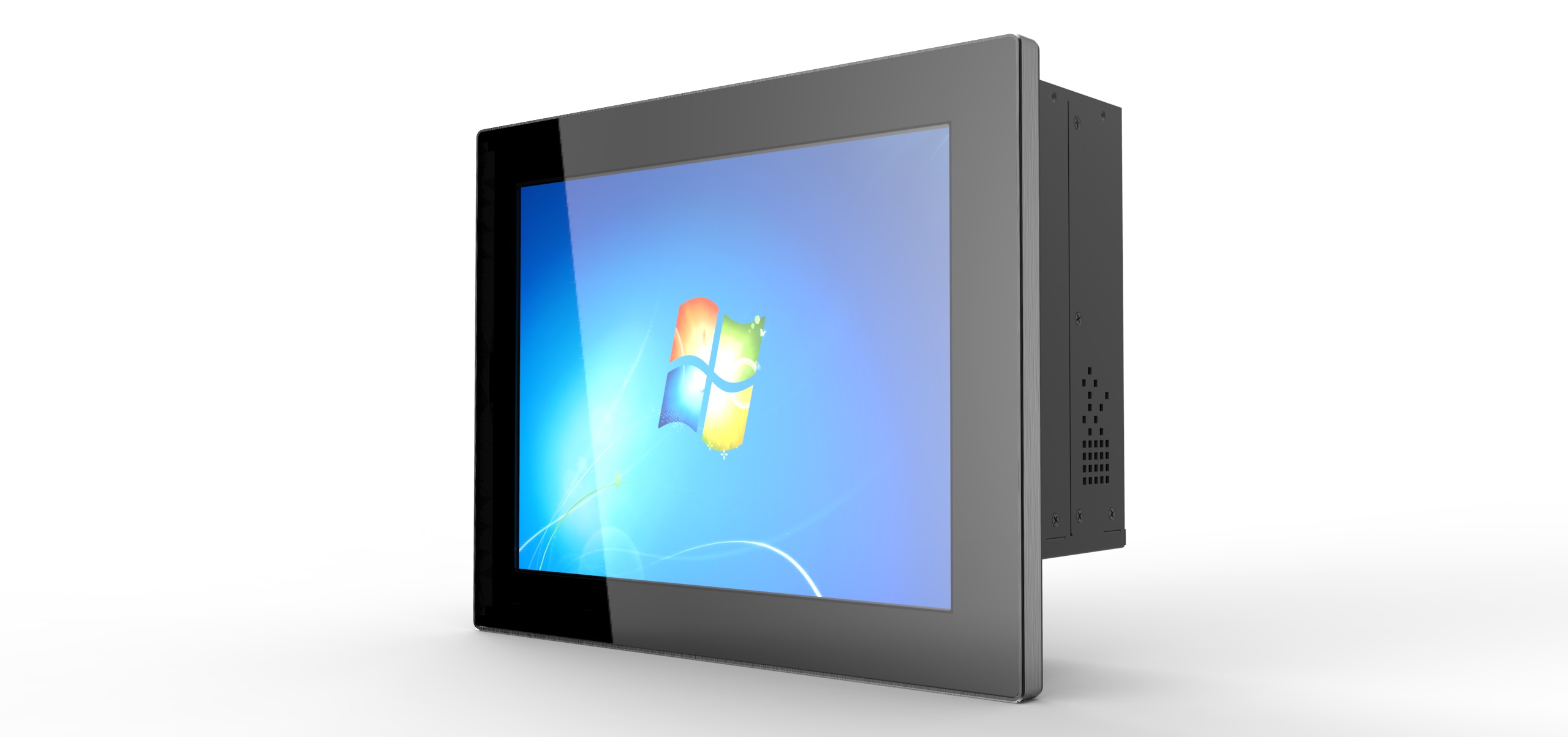

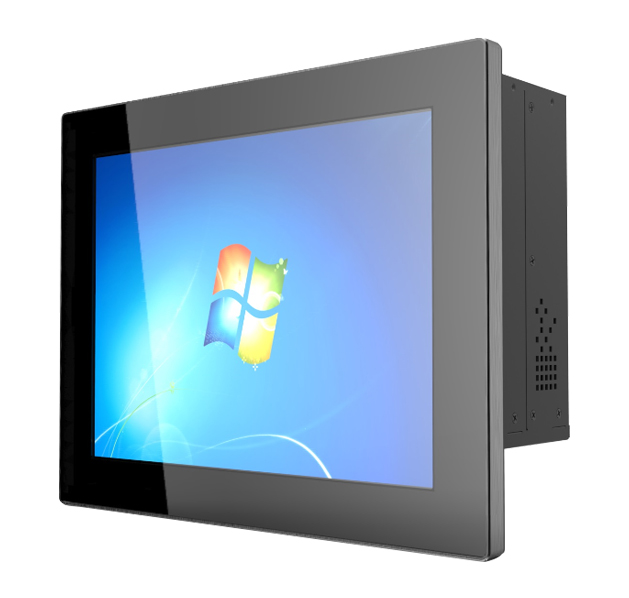

APC-1270T

12.1” Panel PC with 4th Gen. Intel® Desktop Processor with Touch Screen, HDMI, DVI-I, LAN, 4 USB, Audio


Features:
◎ 12.1” XGA support 1024 x 768 pixels
◎ 4th Gen. Intel® desktop processor
◎ 5 wire resistive touch screen
◎ 1 x Gigabit LAN, 1 x HDMI, 1 x DVI,2 x USB 2.0, 2 x USB 3.0
◎ 1 x Audio line in, 1 x Audio line out
◎ Panel Mount, Wall Mount, VESA Mount

The APC-1270T panel pc computer is an all-in-one and compact system designed around a highly integrated Intel® HD Graphics Media Accelerator (GMA) chipset motherboard computer which is equipped with a 12.1-inch TFT LCD display. Features an embedded 4th Gen. Intel® desktop processor, it offers a compact design for limited space environments to meet the demanding performance requirements of business and industrial applications including factory / warehouse / home automation, digital signage, kiosk, network communication and information terminal.



Display











Display Type

12.1” XGA TFT LCD

Resolution

1024 x 768 pixels

Luminance / Brightness

350 cd/m2 (w/o Touch)

Backlight MTBF

LED Backlight, 30,000 hrs

Touch Screen Type

5 wire resistive touch screen with USB interface

Main System















System Board

Mini ITX form factor, Dimension: 170 x 170 mm

CPU

4th Gen. Intel® desktop processor

Socket LGA1150 for Intel® Core i7/i5/i3/Celeron

Chipset

Intel® H81

Memory Slots

Dual channel DDR3 1333/1600MHz SO-DIMM

Support up to 16GB of system memory

Onboard Graphic

Intel® HD Graphic

Audio

High Definition Audio

LAN

Intel® i217V Gigabit Ethernet

Storage



Drive Bay

1 x mSATA SSD bay, 1 x 2.5” HDD, 1 x eSATA

I/O Connectors







1 x DVI, 1 x HDMI, 1 x LAN

2 x USB 2.0, 2 x USB 3.0, 1 x eSATA

1 x Audio line in, 1 x Audio line out

1 x Power switch

Expansion



1 x Mini PCI-Express socket, 3 x COM (2 x RS232, 1 x RS232/422/485) optional

Power Supply



12V~19V DC-in

Dimension



311mm x 249mm x 105.5mm

Environment







Storage Temperature: -20 ~ 60˚C

Operating Temperature: 0 ~ 50˚C

Relative Humidity: 10%~95%, non-condensing

Optional Accessories:

SATA SSD



32GB, 64GB, 128GB

2.5” HDD



250GB, 500GB

DDR3 RAM



2GB, 4GB, 8GB

Cable



DB9 COM Port cable



Optional OS Installation:

Windows Embedded Standard 7 Runtime(WES7)



rdering Information:

APC-1270T



12.1” Panel PC Computer with FAN
