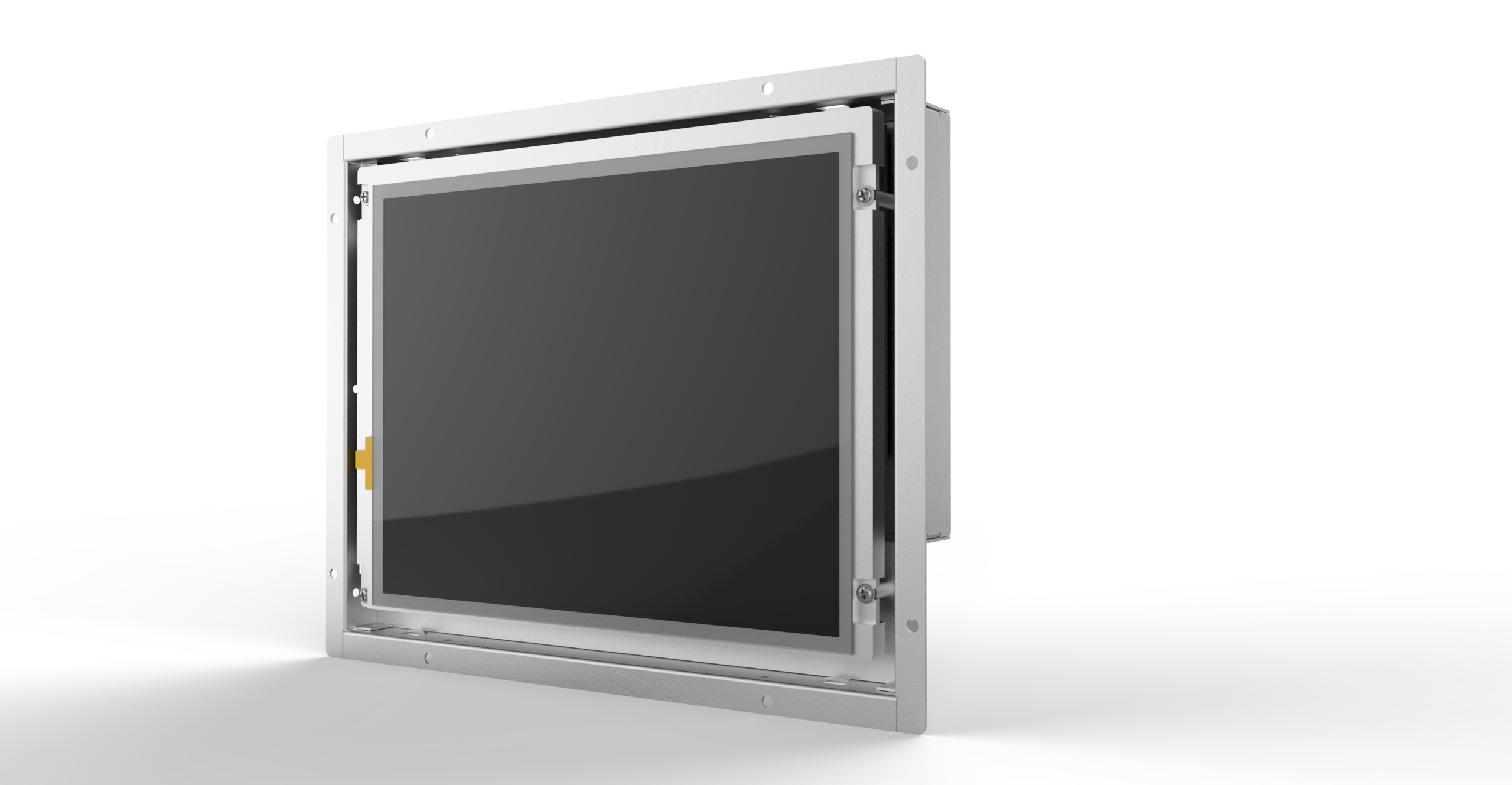

ODP-1010

10.4 " Open Frame Display Monitor with Touch Screen, VGA


Features:
◎ 10.4” LCD supports 800 x 600 pixels
◎ Supports Full-function OSD Keys to Optimize the Display
◎ 15 pin D-sub Analog RGB 0.7Vp-p/75 Ohm signal input
◎ Low power consumption
◎ Slim and Flat Ergonomic Design
◎ Optional 4 Wire resistive touch screen
◎ Supports Open frame Mount, Wall Mount, Panel Mount


Solution: ,

The ODP-1010 embedded open frame display monitor offers a standard 10.4" TFT LCD screen supporting 800 x 600 pixels, a sturdy and ready to mount metal chassis, an optional 4 wire resistive touch screen. Each of the monitors come complete with signal input cables, an OSD control, and a power supply making it to ready to install into the end application. The ODP-1010 is specially designed for commercial and industrial applications. It provides system resellers and solution integrators a wide choice of added value for their products, such as retail or ticketing kiosks, ATM, arcade games, vending machines, industrial equipment and instrumentation.

Model No.



ODP-1010

Construction



Steel Chassis

Display



10.4" Color Active TFT Flat Panel Display

Luminance



400 cd/m2 (Typ.)

Viewing Angle(H/V)



160/140

Resolution



800 x 600, 16.2M / 262K colors

Pixel Pitch



0.264 X 0.264 mm

Backlight Lifetime



LED Backlight, 50,000 Hrs

OSD Controls



Automatic Screen, Setup (OSD), Brightness, Contrast, Horizontal/Vertical Position, Color Temperature

SYSTEM I/O



VGA x 1; 12 VDC Jack x 1;

USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only)

External Power Adapter



DC 12V, with External AC-DC Adapter (100-240V)

Optional Touch Screen



4 Wire resistive touch screen with USB Interface

Dimensions (WxDxH)



279.4mm x 220mm x 44mm

Operating Temperature



0 ~ 50 ˚C

Storage Temperature



-10 ~ 60 ˚C

Relative Humidity



20~80%, non-condensing

Certification



CE

Vibration



2G peak, 5~500Hz (Random)

Shock



15G peak acceleration (11 msec. Duration)

Ordering Information:

ODP-1010



10.4" Open Frame Display Monitor

ODP-1010T



10.4" Open Frame Display Monitor with 4 Wire resistive Touch Screen
