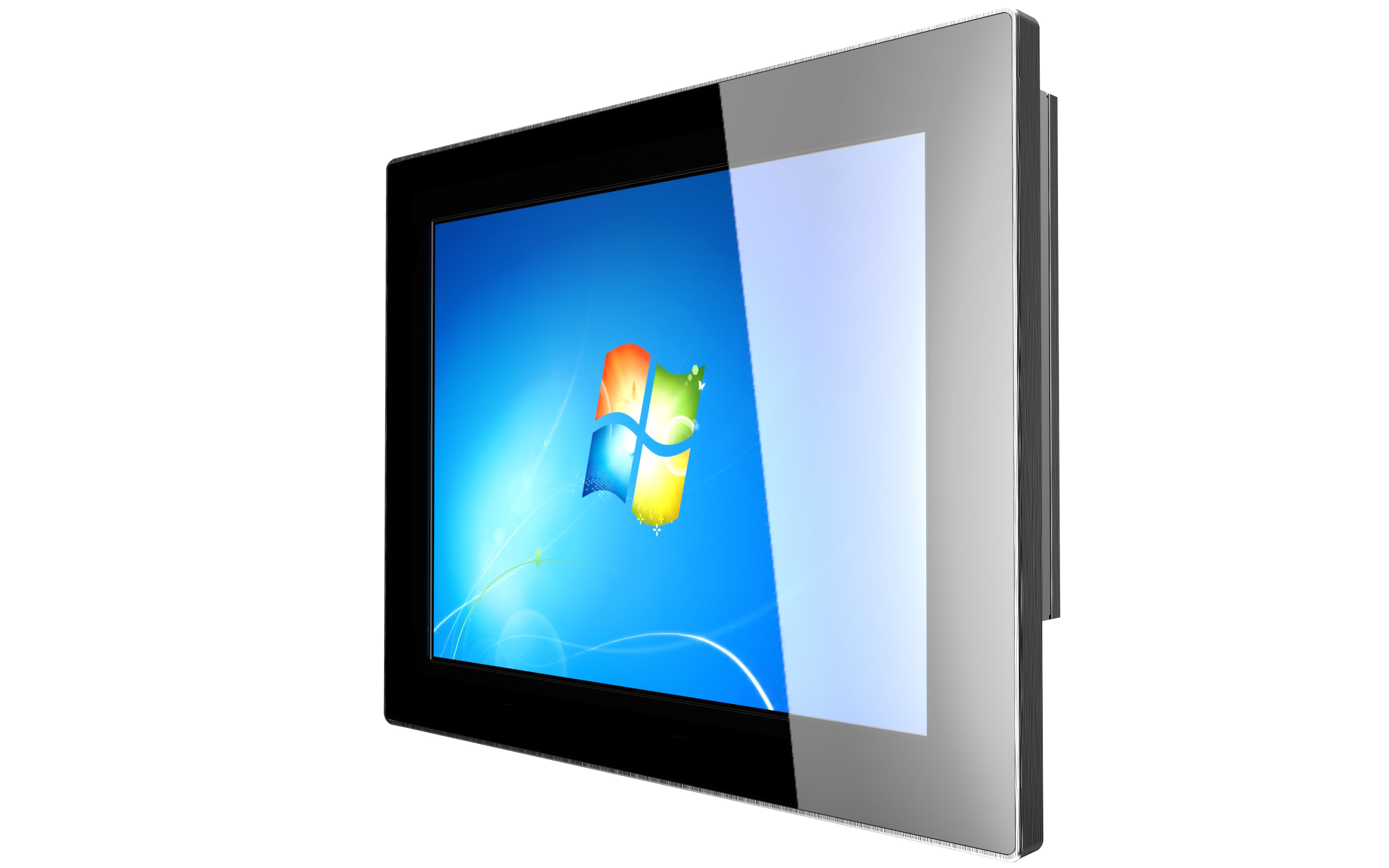

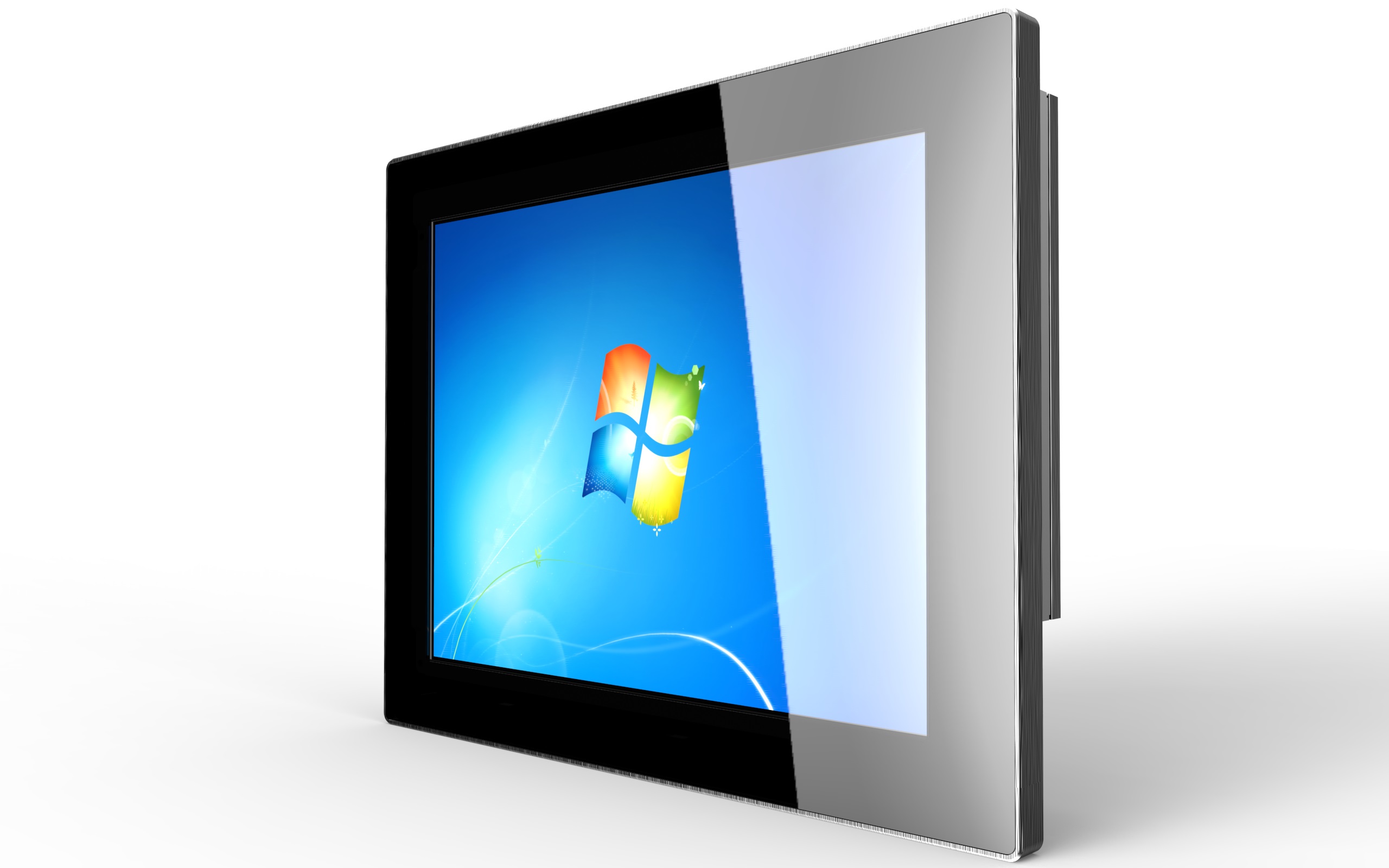

APC-1250T

12.1” Panel PC Intel® Braswell SoC
with Touch Screen, HDMI, VGA, 2 LAN, 2 USB, COM, Audio


Features:
◎ 12.1” XGA support 1024 x 768 pixels
◎ Intel® Pentium®/Celeron® Braswell SoC Processor
◎ 5 wire resistive touch screen
◎ 2 x Gigabit LAN Port, 1 x HDMI, 1 x VGA, 1 x COM, 2 x USB 3.0
◎ 1 x Audio line in, 1 x Audio line out
◎ Panel Mount, Wall Mount, VESA Mount

The APC-1250T panel pc computer is an all-in-one and compact system designed around a highly integrated Intel® Graphics Media Accelerator (GMA) chipset motherboard computer which is equipped with a 12.1-inch TFT LCD display. Features an embedded Intel® Pentium®/Celeron® Braswell SoC processor, it offers a compact design for limited space environments to meet the demanding performance requirements of business and industrial applications including factory / warehouse / home automation, digital signage, kiosk, network communication and information terminal.



Display











Display Type

12.1” XGA TFT LCD

Resolution

1024 x 768 pixels

Luminance / Brightness

350 cd/m2 (w/o Touch)

Backlight MTBF

LED Backlight, 30,000 hrs

Touch Screen Type

5 wire resistive touch screen with USB interface

Main System















System Board

3.5” form factor, dimension: 146 x 102 mm

CPU

Intel® Pentium®/Celeron® Braswell SoC

Celeron® N3150/N3160 quad core processor

Chipset

Intel® Braswell SoC integrated

Memory Slots

Single channel DDR3L 1600 MHz SO-DIMM

Support up to 8 GB of system memory

Onboard Graphic

Intel® HD Graphic 400

Audio

High definition audio

LAN

2 x Intel® i210 Gigabit Ethernet

Storage



Drive Bay

1 x mSATA SSD bay

I/O Connectors







1 x VGA, 1 x HDMI, 2 x LAN, 1 x COM, 2 x USB 3.0

1 x Audio line in, 1 x Audio line out

Power switch

Expansion





1 x Mini PCI-Express socket

2 x COM (optional)

Power Supply



12V or 19V~24V DC-in

Dimension



311mm x 249mm x 67.7mm

Environment







Storage Temperature: -20 ~ 60˚C

Operating Temperature: 0 ~ 50˚C

Relative Humidity: 10%~95%, non-condensing

Optional Accessories:

SATA SSD



32GB, 64GB, 128GB

DDR3L RAM



2GB, 4GB, 8GB

Cable



DB9 COM Port cable




Optional OS Installation:

Windows Embedded Standard 7 Runtime(WES7)




Ordering Information:

APC-1250T



12.1” Panel PC Computer
